7in Ford Lift Kit | 00-05 Excursion | Diesel

7in Ford Lift Kit | 00-05 Excursion | Diesel

Regular price $1,429.99
Regular price Sale price $1,429.99
Sale Sold out

Your Selected Product Fits These Vehicles

  • 2000-2005 Ford Excursion DIESEL
What is this?
  • This is a complete front Superlift leaf spring lift kit for the 2000-2005 Ford Excursion 4WD V-10 and diesel engine
  • Provides 7” lift height
  • Includes track bar bracket, rear add-a-leaf and blocks, front and rear Superlift or rear 5100 Series Bilstein shocks
What does it include?

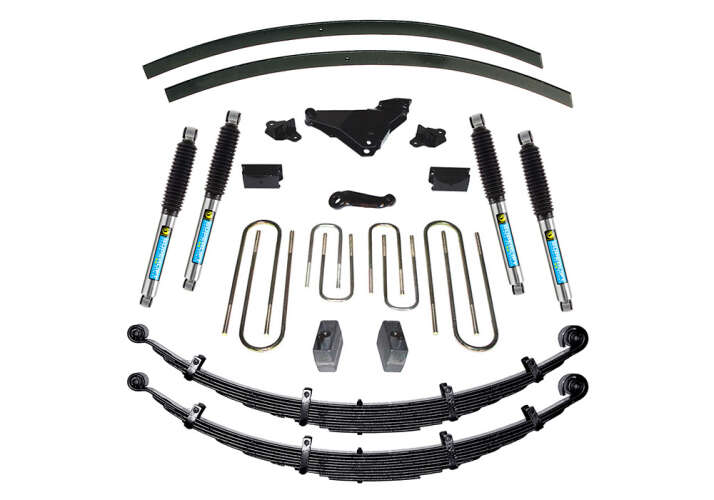

  • Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all hardware required specific to the 2000-2005 4WD Ford Excursion.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation


  • Track bar relocation bracket prevents steering wheel "kick"
  • Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory real travel stops are relocated
  • Rear lift via 4" block and add-a-leaf

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line for additional details.


Tire Wheel Backspacing Offset
37 x 12.5 17 x 9 4.5 -


IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.


  • Installation time: 6 hours
  • Difficulty level: 3 of 5
