6in Dodge/Ram Lift Kit | 09-11 Ram 1500
6in Dodge/Ram Lift Kit | 09-11 Ram 1500
Couldn't load pickup availability
Your Selected Product Fits These Vehicles
- 2009-2010 Dodge Ram 1500
- 2011 Ram 1500

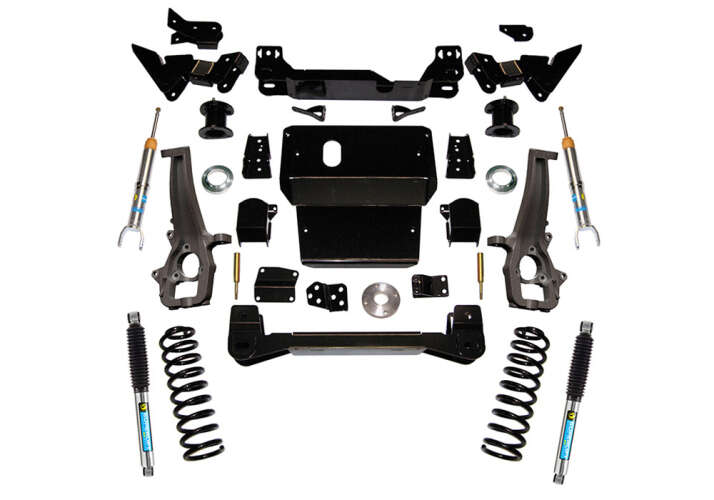

- This is a complete knuckle style suspension lift kit for the 2009-2011 Dodge Ram 1500 4WD
- Provides 6” lift height
- Includes rear coil springs and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers
- All brackets, cross-members, shocks, steering knuckles, rear coil springs, rear track bar bracket, and hardware required specific to the 2009-2011 4WD Dodge Ram 1500
- Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
Features:
- Replacement knuckles yield best possible alignment specs. Front track width is not increased and factory turning radius is retained.
- Front lower control arm crossmembers laser cut from 3/16" material.
- Belly pan, constructed of 1/4" material, connects crossmembers and protects differential.
- Front anti-sway bar link extensions retain factory "service for life" links.
- New Superide Dual Rate rear coil springs provide ideal ride, handling and load carrying capability.
- New bracketry relocates factory rear 4-link points, anti-sway bar links, brake lines and track bar.
- New rear compression travel-stop brackets.
- Rear shock options include Superlift Superlift or Bilstein.
- Installs easily with only slight trimming and no exhaust or driveshaft modifications.
- Compatible with Dodge's Electronic Stability Program.
NOTE: Will not fit Short Bed Standard Cab models due to rear driveline vibration.
NOTE: The TRX factory ride height is approximately 1" taller than the standard Ram. The part # K116 is not recommended for use on the TRX models due to possible alignment issues and CV shaft vibration caused by the additional lift. Consider our 4" lift system (K114) for about 5" of lift or the K116B with the height adjustable Bilstein front struts. Set the snap ring in the center groove of the strut to achieve proper ride height.
Tire | Wheel | Backspacing | Offset |
37 x 12.5 | 18 x 9 | 4.25 - 5 | - |
37 x 12.5 | 20 x 9 | 5 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
- Installation time: 9-10 hours
- Difficulty level: 4 of 5
NOTE: Will not fit Short Bed Standard Cab models due to rear driveline vibration.
NOTE: The TRX factory ride height is approximately 1" taller than the standard Ram. The part # K116 is not recommended for use on the TRX models due to possible alignment issues and CV shaft vibration caused by the additional lift. Consider our 4" lift system (K114) for about 5" of lift or the K116B with the height adjustable Bilstein front struts. Set the snap ring in the center groove of the strut to achieve proper ride height.
