5in Dodge Lift Kit | 00-02 Dodge Ram 2500/3500 | Diesel or V-10

Superlift Suspension Systems now available with Superlift Shocks OR Fox® Shocks:

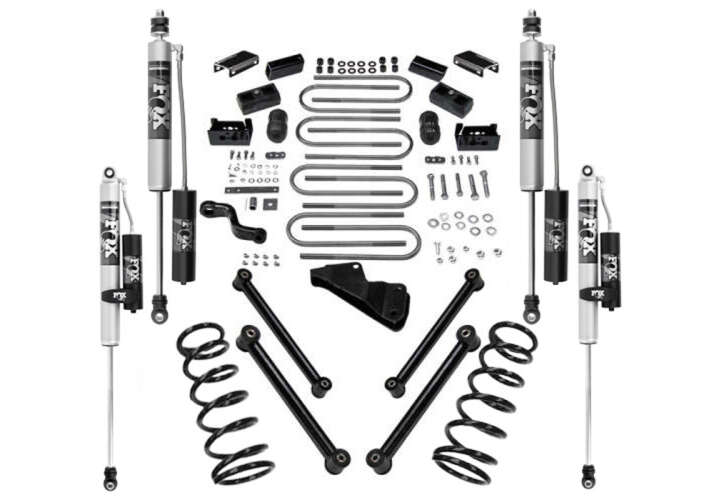

This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 2000-2002 Ram 2500 | 3500  that provides 5 inches of lift height.  This kit is available with either Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks.

Front lift is via new, pre-set coil springs for Ram 2500 |3500.  A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing.  New Upper | Lower front axle-to-frame link arms restore factory alignment specifications.  Front and rear suspension compression travel control is also addressed.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox® Performance series 2.0 IFP Shocks.

Features | benefits:

• Track bar relocation bracket prevents the steering wheel kick and stud bind
• Fabricated Brackets constructed from .25” thick plate steel
• Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
• Front | Rear Compression travel stop brackets eliminate over-compression
• Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
• Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
• Add-a-leafs for rear
• Aligns to OEM specifications
• Backed by our Limited Lifetime Warranty

NOTES: (Additional Info)

• Minor cutting and/or welding required
• Rear u-bolts fit vehicles with and without a top-mounted overload leaf.  Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed.  Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

• Installation time: 7 hours
• Difficulty level: 4 of 5

Additional Info

Pitman arm included in kit box.

Minor cutting and/or welding required.

Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2" of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.
