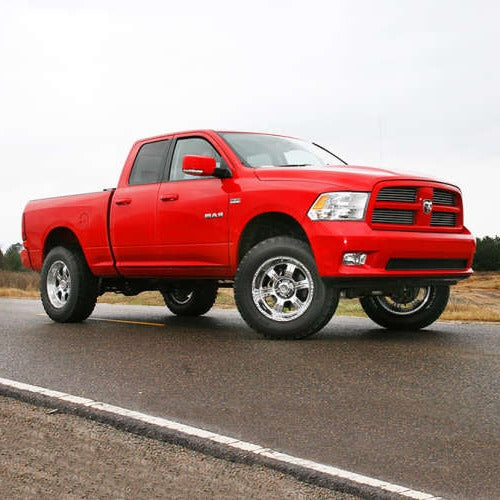

This is a complete knuckle style suspension lift kit for the 2009-2011 Dodge Ram 1500 4WD; providing 4” of lift height
Includes rear coil springs and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers
What does it include?
All brackets, cross-members, shocks, steering knuckles, rear coil springs, rear track bar bracket, and hardware required specific to the 2009-2011 4WD Dodge Ram 1500
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
California Residents: Prop 65
WARNING
Features:
Replacement knuckles yield best possible alignment specs. Front track width is not increased and factory turning radius is retained.
Front lower control arm crossmembers laser cut from 3/16" material.
Belly pan, constructed of 1/4" material, connects crossmembers and protects differential.
Front anti-sway bar link extensions retain factory "service for life" links.
Superide Dual Rate rear coil springs provide ideal ride, handling and load carrying capability.
New bracketry relocates factory rear 4-link points, anti-sway bar links, brake lines and track bar.
New rear compression travel-stop brackets.
Rear shock options include Superlift or (SS) by Bilstein.
Installs easily with only slight trimming and no exhaust or driveshaft modifications.
Compatible with Dodge's Electronic Stability Program.
NOTE:Will not fit Short Bed Standard Cab models due to rear driveline vibration.
NOTE:TRX model trucks will achieve approximately 1" of additional front lift.
Tire
Wheel
Backspacing
Offset
35 x 12.5
18 x 9
4.25 - 5
-
35 x 12.5
20 x 9
5
-
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation time: 9-10 hours
Difficulty level: 4 of 5
NOTE:Will not fit Short Bed Standard Cab models due to rear driveline vibration.
NOTE:TRX model trucks will achieve approximately 1" of additional front lift.
