4in Ram Lift Kit | 14-18 2500 | Diesel
4in Ram Lift Kit | 14-18 2500 | Diesel
Couldn't load pickup availability
Your Selected Product Fits These Vehicles
- 2014-2018 Ram 2500 DIESEL
- This is a complete radius arm drop bracket suspension Lift Kit for the 2014-2018 Dodge Ram 2500 4WD – diesel engine
- Provides 4” lift height
- Includes rear blocks and front and rear Superlift shock absorbers or front and rear 5100 Series Bilstein shock absorber or Fox® 2.0 Shocks

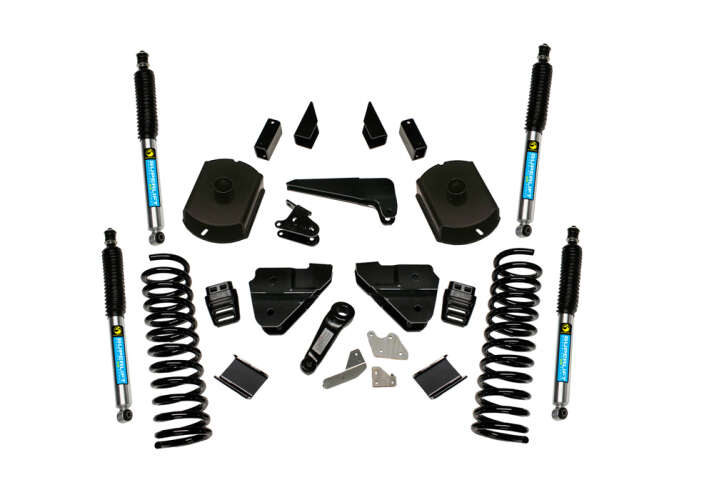

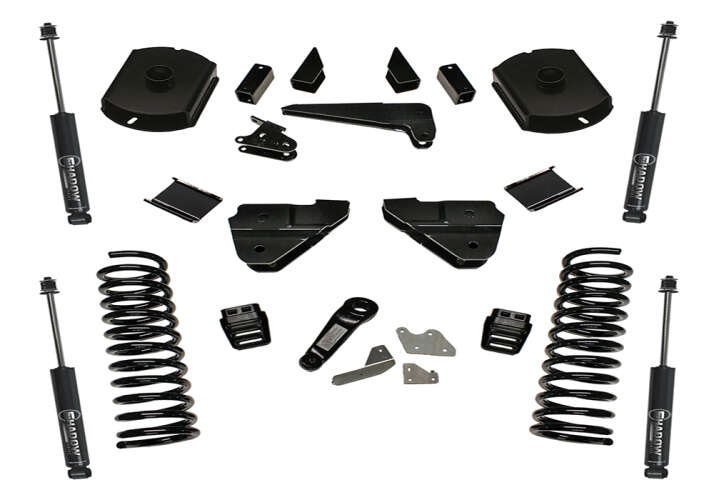

- Front lift includes 4” coil springs, radius arm brackets, track bar bracket, pitman arm, sway bar correction, bump stops, brake line brackets, Superlift shocks OR Bilstein shocks, OR Fox Shocks and all required hardware
- Rear lift includes a 2” block kit, Superlift shocks OR Bilstein shocks, OR Fox Shocks and all required hardware.
- Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
Superlift Suspension Systems now available in Superlift Shocks, Bilstein Shocks, or Fox Shocks:
Superlift’s 4-Inch Lift kit for the 2014-2018 Dodge Ram 2500 HD radius arm drops and 3 different shock options.These radius arm drops use the factory radius arms to help locate the axle front-to-rear while allowing to maintain proper caster. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.
This kit includes rear coil spacers, radius arm drops, front and rear Shocks. All required parts are included to make sure your Ram 2500 HD handles and performs just like a stock truck!
Features:
- Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
- Radius Arm drops maintain proper caster
- Track bar relocation bracket prevents stud bind and steering wheel kick
- Pitman arm relieves drag link angle to prevent bump steer/wandering
- Front and Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
- Backed by our limited lifetime warranty
Benefits:
- Retains OEM caster and camber alignment specifications
- Maintains ride quality and handling characteristics
- Designed using Original Equipment (OE) CAD data for accuracy.
NOTES:
- Does not fit Power Wagon Models
- Does not fit models with factory air suspension
| Tire | Wheel | Backspacing | Offset |
| 35 x 12.5 | 17 x 9 | 4.5 - 5 | - |
| 35 x 12.5 | 18 x 9 | 4.5 - 5 | - |
| 35 x 12.5 | 20 x 9 | 4.5 - 5 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
- Installation time: 7 hours
- Difficulty level: 3 of 5
NOTE: Does not fit Power Wagon models.
NOTE: Does NOT fit Models with rear air suspension
